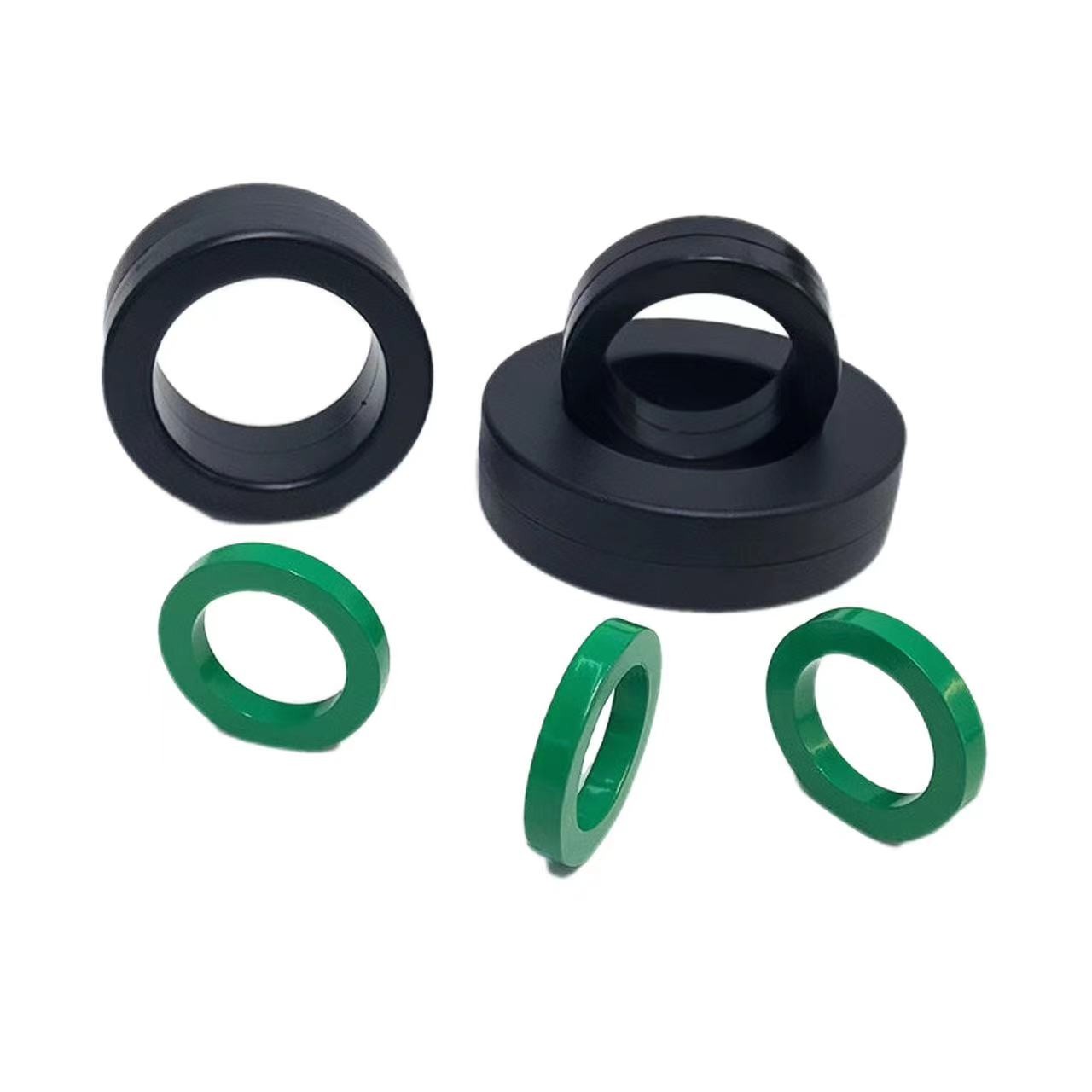

1K101 Amorphous Core

Product description： Amorphous magnetic core specifications and modelsFinished dimensionLe(cm)S(cm2)M(g)50/32*2054/28*23124.617713050/35*2054/31*23129.5187.314055/35*2059/31*23130.8195.615560/32*2064/28*23136.4215.416560/35*2064/31*23148.9228.719064/40*2068/37*23157.5235.622070/40*2575/37*28164.1365.434070/45*2575/42*28172.5342.632075/50*2579/45*29186.9361.934080/50*2085/45*23196.9294.533080/50*2585/45*29196.9368.243085/50*2089/45*23213.5372.445090/50*2595/45*28226.8369.847595/50*20100/45*23238.6373.551595/60*25100/55*28239.4386.1520100/60*20105/55*24240.7391.4530105/60*30110/55*35246.1657.7950120/60*30125/57*35261.3864.81260120/70*20125/67*25284.5488.1800120/70*30125/67*35284.5732.11120130/80*40136/76*45317.3980.61660130/80*50136/76*55317.312262100Note: Other cores of various specifications can be customized as required by customer

Product type：

Characteristic：

Description:

Amorphous alloy is a new soft magnetic material. It is produced through an advanced technology of rapid solidification of molten metal at a cooling rate of about a million 'C/sec. During this process the metal is rapidly quenched as a form of ribbon with 23-35 µm in thickness.

Product Details:

Amorphous magnetic core
specifications and models	Finished dimension	Le(cm)	S(cm2)	M(g)
50/32*20	54/28*23	124.6	177	130
50/35*20	54/31*23	129.5	187.3	140
55/35*20	59/31*23	130.8	195.6	155
60/32*20	64/28*23	136.4	215.4	165
60/35*20	64/31*23	148.9	228.7	190
64/40*20	68/37*23	157.5	235.6	220
70/40*25	75/37*28	164.1	365.4	340
70/45*25	75/42*28	172.5	342.6	320
75/50*25	79/45*29	186.9	361.9	340
80/50*20	85/45*23	196.9	294.5	330
80/50*25	85/45*29	196.9	368.2	430
85/50*20	89/45*23	213.5	372.4	450
90/50*25	95/45*28	226.8	369.8	475
95/50*20	100/45*23	238.6	373.5	515
95/60*25	100/55*28	239.4	386.1	520
100/60*20	105/55*24	240.7	391.4	530
105/60*30	110/55*35	246.1	657.7	950
120/60*30	125/57*35	261.3	864.8	1260
120/70*20	125/67*25	284.5	488.1	800
120/70*30	125/67*35	284.5	732.1	1120
130/80*40	136/76*45	317.3	980.6	1660
130/80*50	136/76*55	317.3	1226	2100

Note: Other cores of various specifications can be customized as required by customer
